Product Description

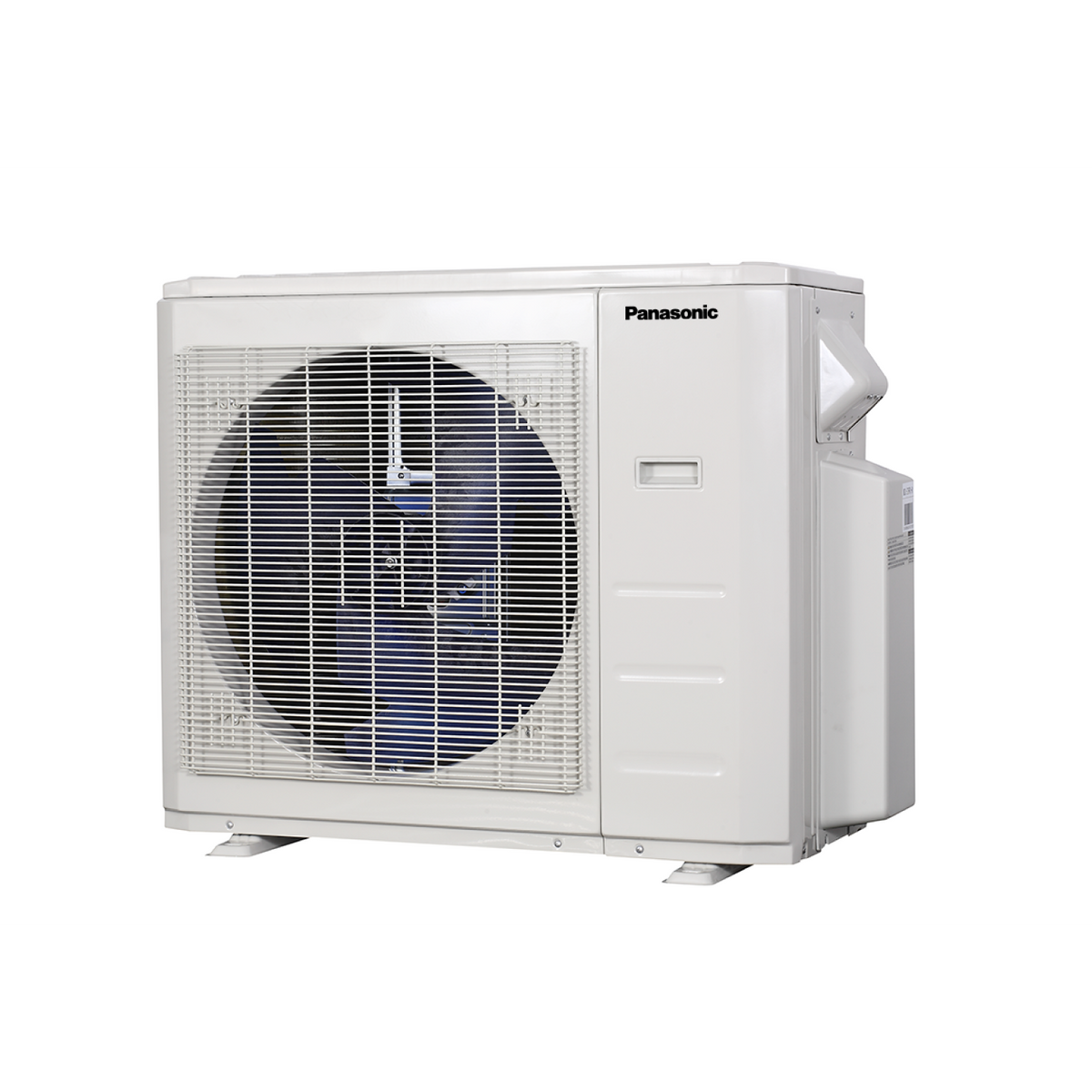

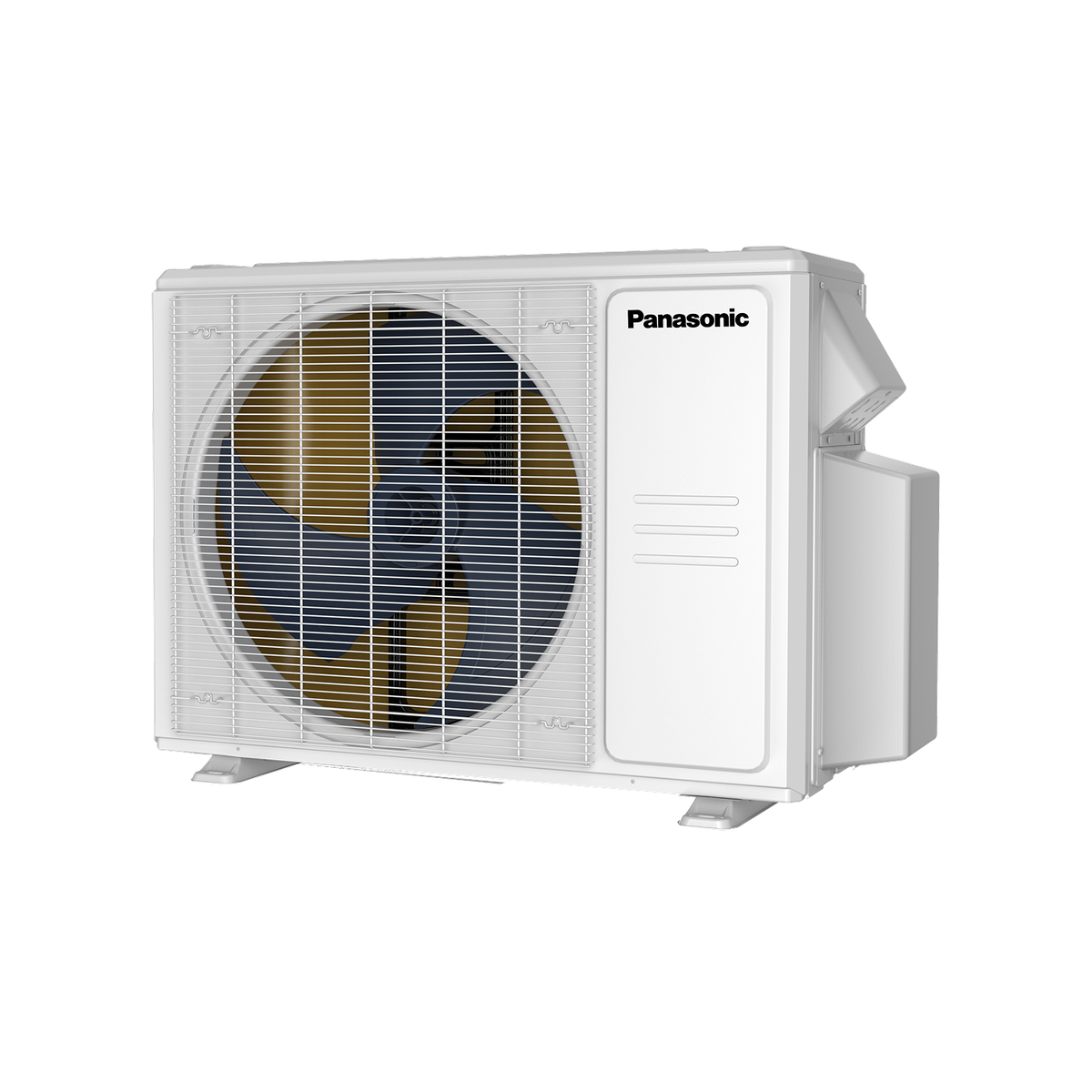

The Panasonic Project Series CU-YM12CBUC is a 12,000 BTU outdoor inverter heat pump condenser designed for efficient heating and cooling in residential, multi-family, retrofit, and light commercial applications. It uses R454B refrigerant and is designed for cold-climate heating operation down to -13°F (-25°C). The CU-YM12CBUC is compatible with Panasonic Project Series indoor units, including the high-wall system.
Key Features
- 12,000 BTU outdoor inverter heat pump condenser
- Compatible with Panasonic Project Series indoor units
- Suitable for single-zone and compatible multi-zone applications
- Inverter heat pump technology
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- ENERGY STAR Cold Climate certified
- Base pan heater included
- Designed for residential, multi-family, retrofit, and light commercial applications
- Compact outdoor unit design
Performance Specifications
- Outdoor Unit Model: CU-YM12CBUC
- Rated Cooling Capacity: 12,000 BTU/h
- Cooling Capacity Range: 2,600–13,700 BTU/h
- Cooling Capacity: 3.52 kW
- Rated Heating Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,100–14,400 BTU/h
- Heating Capacity: 3.52 kW
- Heating Capacity at 5°F: 8,600 BTU/h
- Heating Capacity at 17°F: 10,400 BTU/h
- Moisture Removal: 2.75 pints/h (1.3 L/h)
- Outdoor Airflow at Turbo: 383 CFM
Efficiency Ratings
- SEER2: 23.1
- EER2: 12.2
- HSPF2 Region IV: 11.5
- HSPF2 Region V: 8.5
- COP at 47°F: 3.69
- COP at 5°F: 2.35
Electrical Specifications
- Power Supply: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Minimum Circuit Ampacity: 12 A
- Maximum Fuse / Breaker Size: 15 A
- Cooling Power Input: 984 W
- Heating Power Input: 953 W
Outdoor Unit Specifications
- Model: CU-YM12CBUC
- Unit Type: Outdoor Heat Pump Condenser
- Capacity Class: 12,000 BTU
- Compressor Type: Inverter
- Refrigerant: R454B
- Outdoor Dimensions (H x W x D): 21-7/8 x 30-1/8 x 11-7/8 in
- Outdoor Dimensions (H x W x D): 555 x 765 x 303 mm
- Outdoor Unit Weight: 62.2 lb (28.2 kg)
- Outdoor Airflow at Turbo: 383 CFM
- Outdoor Noise Level: 54 dBA
Refrigerant & Piping Specifications
- Refrigerant Type: R454B
- Liquid Line Size: 1/4 in
- Suction Line Size: 3/8 in
- Maximum Line Set Length: 82 ft
- Maximum Elevation Difference: 49.2 ft
Cold Climate Operation
- Minimum Heating Ambient Temperature: -13°F (-25°C)
- Minimum Cooling Ambient Temperature: -13°F (-25°C)
- Maximum Outdoor Operating Temperature: 122°F (50°C)
- Base Pan Heater: Included
Applications
- Residential heating and cooling
- Single-family homes
- Multi-family housing
- Retrofit projects
- Light commercial applications
- Room-by-room temperature control
- Single-zone installations
- Compatible multi-zone installations
