Product Description

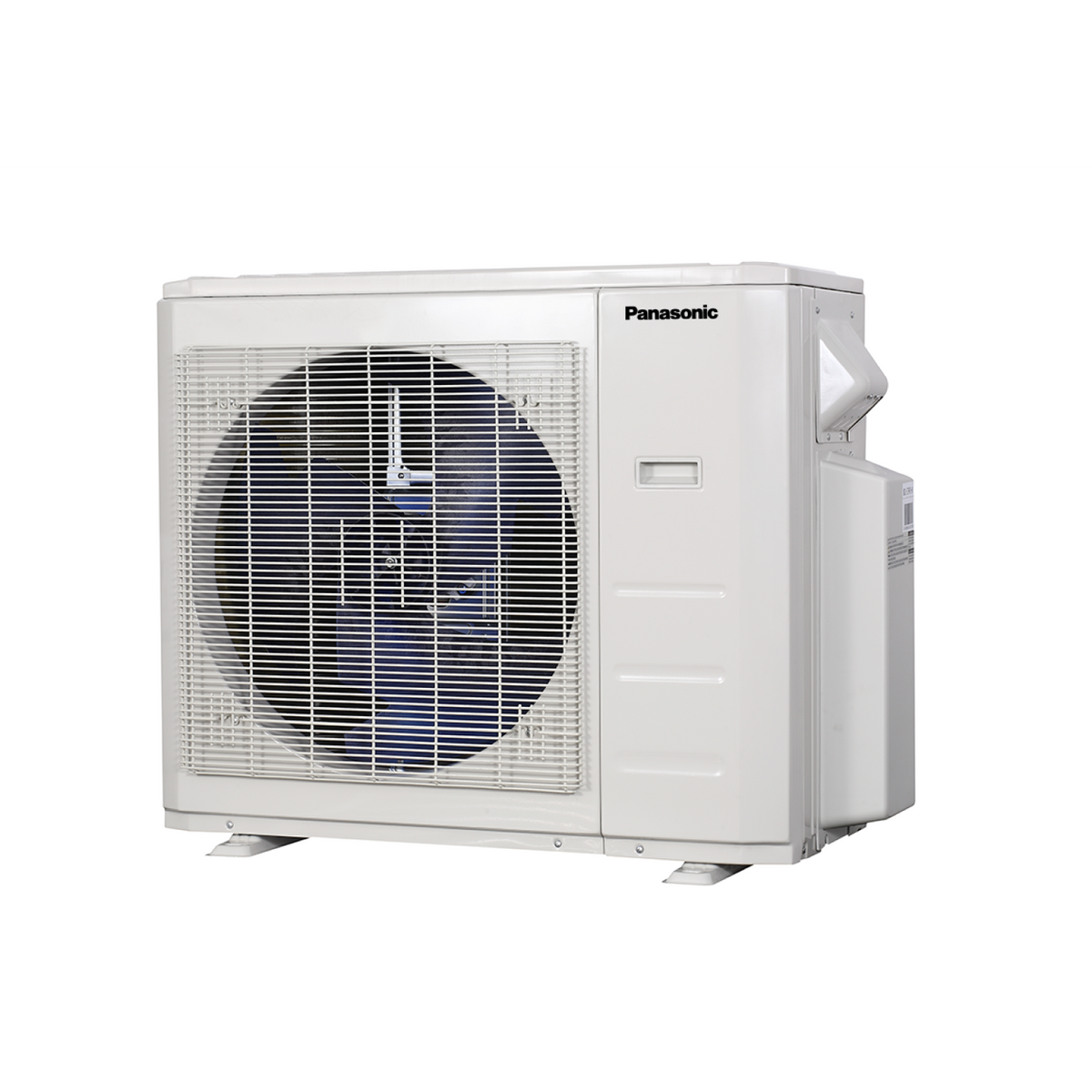

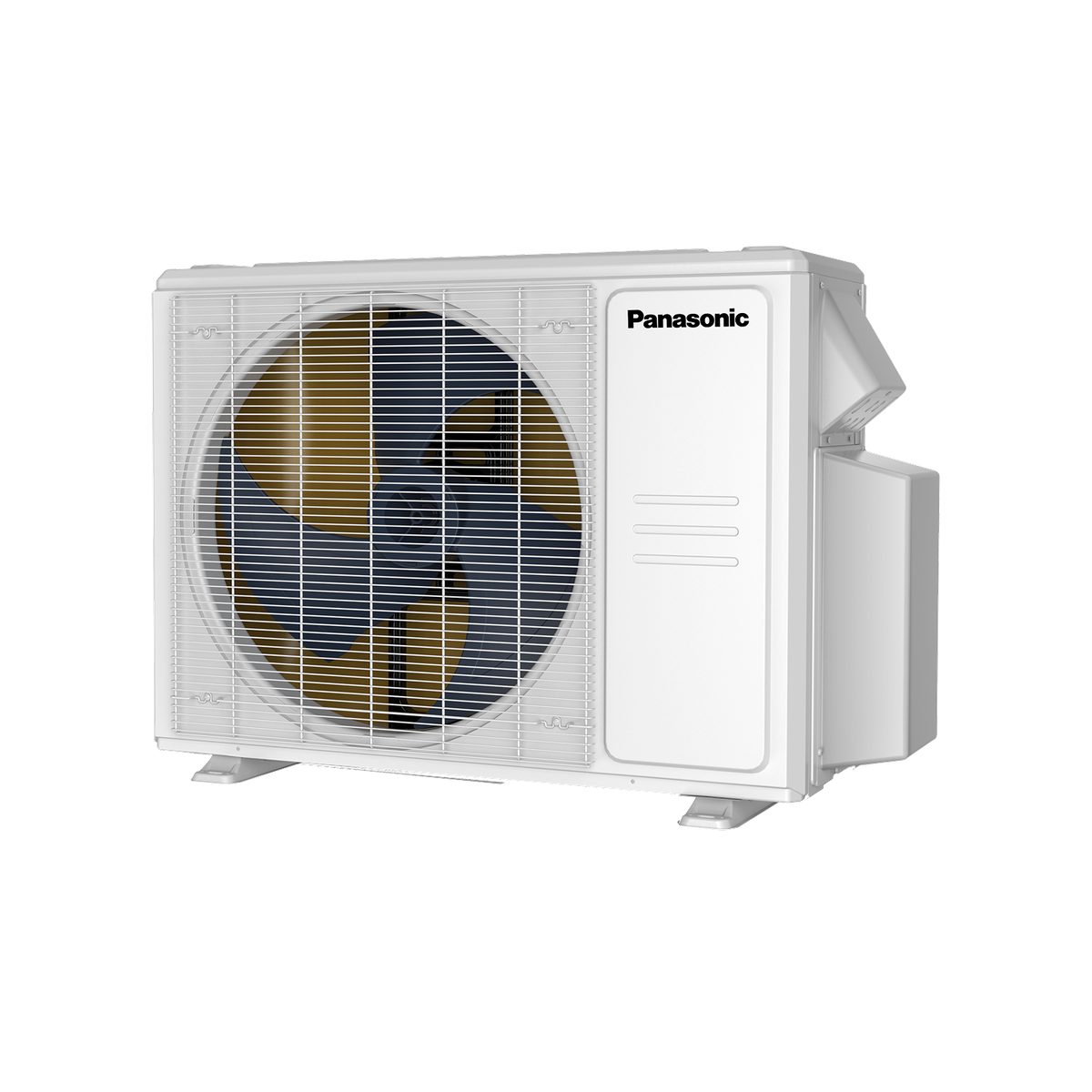

The Panasonic Project Series CU-YM18CBUC is an 18,000 BTU outdoor inverter heat pump condenser designed for efficient heating and cooling in residential, multi-family, retrofit, and light commercial applications. It uses R454B refrigerant and is designed for cold-climate heating operation down to -13°F (-25°C). The CU-YM18CBUC pairs with the high-wall indoor unit and can also support compatible multi-zone configurations.
Key Features
- 18,000 BTU outdoor inverter heat pump condenser
- Suitable for residential, multi-family, retrofit, and light commercial applications
- Supports single-zone and compatible multi-zone configurations
- Inverter heat pump technology
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- ENERGY STAR Cold Climate certified
- Base pan heater included
- Designed for efficient room-by-room temperature control
Performance Specifications
- Outdoor Unit Model: CU-YM18CBUC
- Compatible Indoor Unit: CS-YM18CKUW
- Cooling Capacity: 18,000 BTU/h
- Cooling Capacity Range: 3,600–20,000 BTU/h
- Cooling Capacity: 5.28 kW
- Heating Capacity: 18,000 BTU/h
- Heating Capacity Range: 7,600–22,000 BTU/h
- Heating Capacity: 5.28 kW
- Moisture Removal at High: 2.96 pints/hour
- Moisture Removal: 1.4 L/h
- Outdoor Airflow at Turbo: 759 CFM
Efficiency Ratings
- SEER2: 24.0
- EER2: 13.5
- HSPF2 Region IV: 11.1
- HSPF2 Region V: 8.3
Electrical Specifications
- Power Supply: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Cooling Power Input: 1,333 W
- Heating Power Input: 1,385 W
- System Type: Inverter Heat Pump
Outdoor Unit Specifications
- Model: CU-YM18CBUC
- Unit Type: Outdoor Heat Pump Condenser
- Capacity Class: 18,000 BTU
- Outdoor Dimensions (H x W x D): 26-1/2 x 35 x 13-1/2 in
- Outdoor Dimensions (H x W x D): 673 x 890 x 342 mm
- Outdoor Unit Weight: 92.59 lb (42 kg)
- Outdoor Airflow at Turbo: 759 CFM
Refrigerant & Cold Climate Operation
- Refrigerant Type: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
- Base Pan Heater: Included
- Low-GWP Refrigerant: R454B
Applications
- Residential heating and cooling
- Single-family homes
- Multi-family housing
- Retrofit projects
- Light commercial applications
- Single-zone installations
- Compatible multi-zone installations
