age_group:
18+
category:
Project series
country_of_origin:
USA
gender:
Unisex
manufacturer:
Panasonic Products
mpn:
CU-YM9CBUC
subcategory:
Outdoor Unit
type:
Outdoor Unit
Product Description

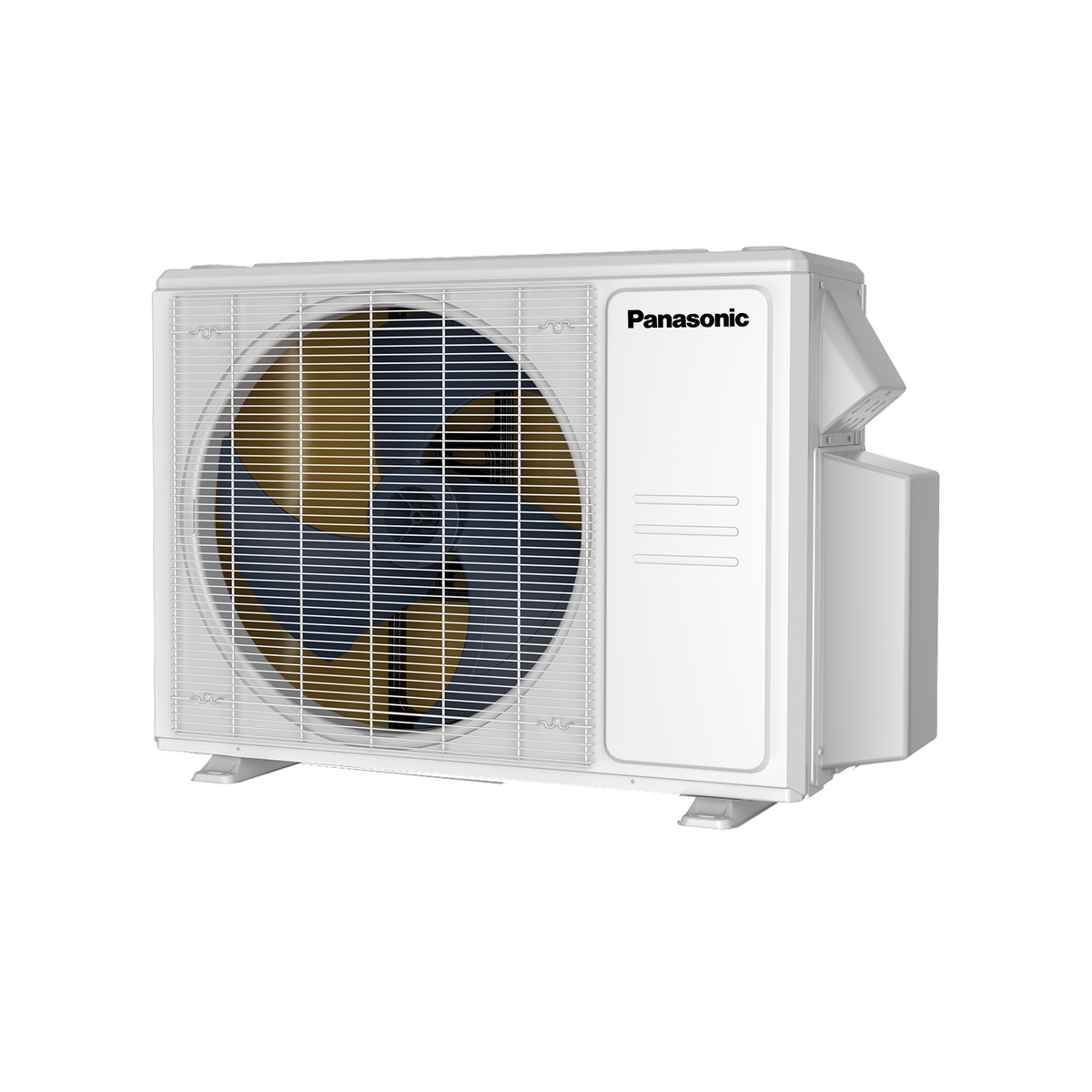

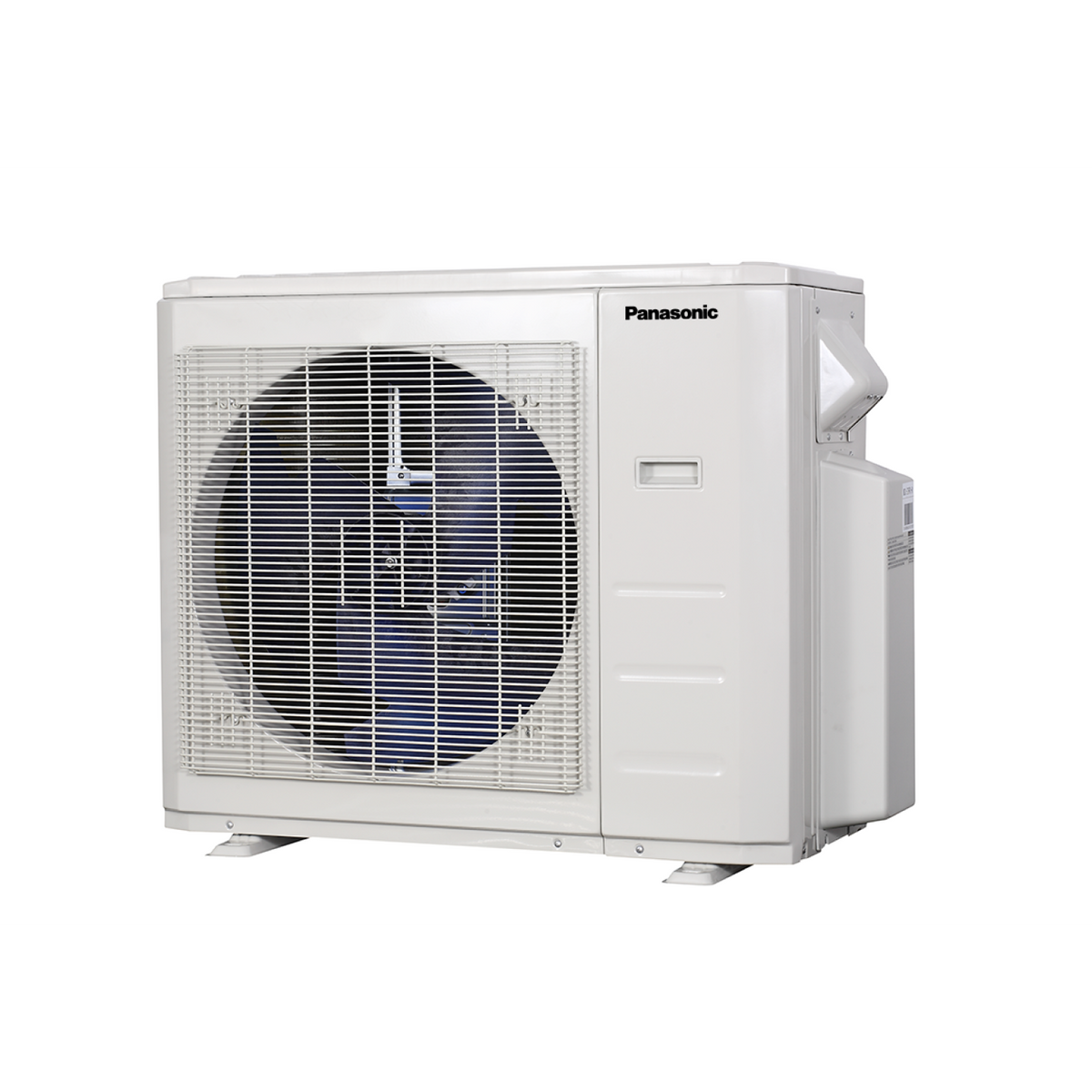

The Panasonic Project Series CU-YM9CBUC is a 9,000 BTU outdoor inverter heat pump condenser designed for efficient heating and cooling in residential, multi-family, retrofit, and light commercial applications. It uses R454B refrigerant and is designed for cold-climate heating operation down to -13°F (-25°C). The CU-YM9CBUC is compatible with Panasonic Project Series indoor units, including the high-wall system, and supports single-zone or compatible multi-zone configurations.
Key Features
- 9,000 BTU outdoor heat pump condenser
- Inverter-driven heat pump system
- Compatible with Panasonic Project Series indoor units
- Suitable for single-zone and compatible multi-zone applications
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- ENERGY STAR Cold Climate certified
- Base pan heater included
- Designed for retrofit, multi-family, residential, and light commercial applications
- Compact outdoor design
Performance Specifications
- Outdoor Unit Model: CU-YM9CBUC
- Cooling Capacity: 9,000 BTU/h
- Cooling Capacity Range: 3,100–10,900 BTU/h
- Cooling Capacity: 2.64 kW
- Heating Capacity: 10,000 BTU/h
- Heating Capacity Range: 4,200–14,200 BTU/h
- Heating Capacity: 2.93 kW
- Moisture Removal: 1.5 pints/h (0.7 L/h)
- Outdoor Airflow at Turbo: 383 CFM
Efficiency Ratings
- SEER2: 24.6
- EER2: 14.7
- HSPF2 Region IV: 13.0
- HSPF2 Region V: 9.5
Electrical Specifications
- Power Supply: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Cooling Power Input: 612 W
- Heating Power Input: 800 W
- System Type: Inverter Heat Pump
Outdoor Unit Specifications
- Model: CU-YM9CBUC
- Unit Type: Outdoor Heat Pump Condenser
- Capacity Class: 9,000 BTU
- Outdoor Dimensions (H x W x D): 21-7/8 x 30-1/8 x 11-7/8 in
- Outdoor Dimensions (H x W x D): 555 x 765 x 303 mm
- Outdoor Unit Weight: 62 lb (28 kg)
- Outdoor Airflow at Turbo: 383 CFM
Refrigerant & Cold Climate Operation
- Refrigerant Type: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
- Base Pan Heater: Included
- Refrigerant Type: Low-GWP R454B
Applications
- Residential heating and cooling
- Single-family homes
- Multi-family housing
- Retrofit projects
- Light commercial applications
- Single-zone installations
- Compatible multi-zone installations
