Product Description

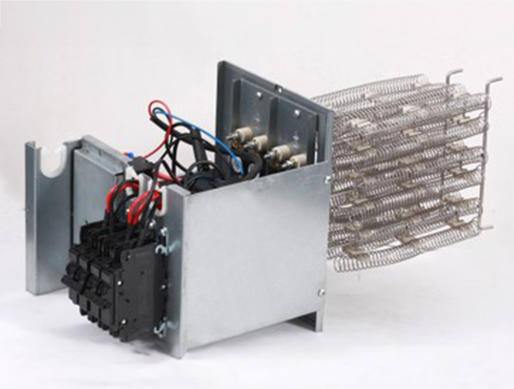

The Panasonic CZ-FM25P is a 25 kW auxiliary electric heater kit designed for compatible Panasonic INTERIOS R454B Central Heat Pump Systems. It provides supplemental electric heat that can operate alongside the heat pump when additional heating capacity is required. The heater is designed for use with compatible 5-ton air handlers and operates on 208/230V single-phase power.
Key Features
- 25 kW auxiliary electric heater kit
- Designed for Panasonic R454B Central Heat Pump Systems
- Compatible with 5-ton air handler systems
- Provides supplemental electric heating alongside the heat pump
- 208/230V single-phase, 60Hz operation
- Three-circuit electrical configuration
- Designed for integration with compatible Panasonic central air handlers
- Part of Panasonic's INTERIOS auxiliary heating lineup
Specifications
- Brand: Panasonic
- Model / SKU: CZ-FM25P
- Product Type: Auxiliary Electric Heater Kit
- Nominal Heater Class: 25 kW
- Operating Voltage: 208/230V
- Phase: 1 Phase
- Frequency: 60Hz
- Current: 90.1 A at 208V / 100 A at 230V
- Heat Power: 18.75 kW at 208V / 23 kW at 230V
Electrical Specifications
- MCA Circuit 1: 23 A at 208V / 27 A at 230V
- MCA Circuit 2: 46 A at 208V / 53 A at 230V
- MCA Circuit 3: 46 A at 208V / 53 A at 230V
- Maximum Fuse Circuit 1: 25 A at 208V / 30 A at 230V
- Maximum Fuse Circuit 2: 50 A at 208V / 60 A at 230V
- Maximum Fuse Circuit 3: 50 A at 208V / 60 A at 230V
- Number of Electrical Circuits: 3
Dimensions and Weight
- Heater Dimensions: 21.06 x 11.81 x 8.03 in
- Heater Dimensions: 535 x 300 x 204 mm
- Net Weight: 11.9 lb (5.9 kg)
- Package Dimensions: 24.02 x 16.34 x 10.24 in
- Package Dimensions: 610 x 415 x 260 mm
- Gross Weight: 18.96 lb (8.6 kg)
Compatibility and Application
- Compatible with Panasonic R454B Central Heat Pump Systems
- Compatible with 5-ton air handler systems
- Application: Supplemental electric heating for central ducted HVAC systems
- Designed for use with compatible Panasonic INTERIOS central heat pump air handlers
- Auxiliary heating is controlled by the compatible system controller as additional heat is required
Communication and System Compatibility
- Compatible with Panasonic Central Heat Pump System controls
- Supports 485 thermostat communication mode with the included wired thermostat controller
- Supports 24V mode for use with a compatible third-party 24V thermostat
- Auxiliary heater kits are intended for Central Heat Pump Systems and are not applicable to Panasonic A-Coil Systems
