country_of_origin:
TW
manufacturer:
Pelican
mpn:
AL1616-0505-RP-032
type:
Cases

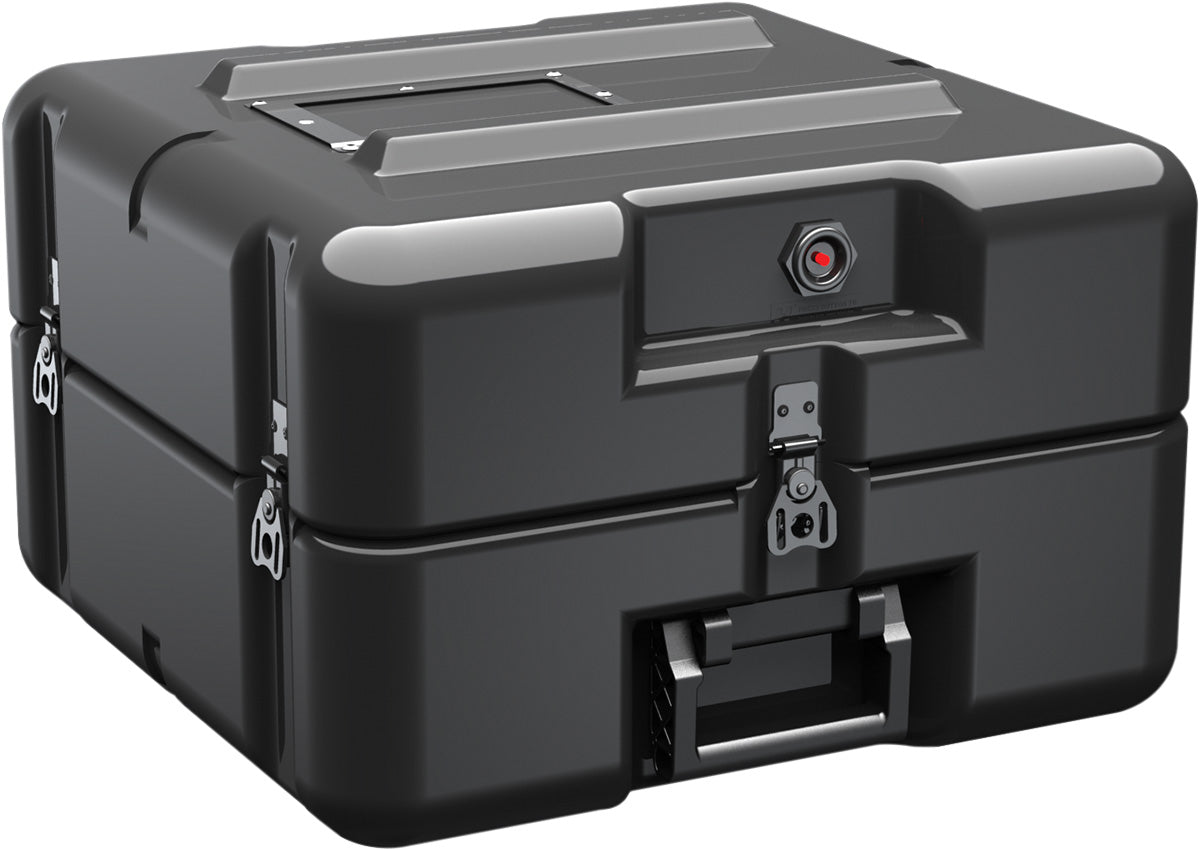

Trusted for over 40 years by the US Military, Single Lid Cases offer 20% more protective material in the edges and corners, where it is needed most, ensuring that valuable equipment is kept safe from any unforeseen elements. Available in several sizes, these cases are completely customizable with a wide range of bolt-on options like document holders, casters, humidity indicators and much more.
Features
- One-piece construction, molded from lightweight, high-impact polyethylene
- Molded-in ribs and corrugations for secure, non-slip stacking, columnar strength, and added protection
- Patented molded-in metal inserts for catch and hinge attachment points, which provide strength and spread loads to the container
- Positive anti-shear locks, which prevent lid separation after impact, and reduce stress on hardware
- Molded-in, tongue-in-groove gasketed parting lines for splash resistance and tight seals, even after impact
- Reinforced corners and edges for additional impact protection
- Recessed hardware for extra protection
Additional Information
Interior (L×W×D) Dimesion15.75 x 15.88 x 10.54 in (40 x 40.3 x 26.8 cm)
Exterior (L×W×D) Dimension18.75 x 18.88 x 12.19 in (47.6 x 48 x 31 cm)
Lid Depth5.12" (13 cm)
Bottom Depth5.42" (13.8 cm)
Total Depth10.54" (26.8 cm)
Int Volume1.53 ft³ (0.043 m³)
Weight14.50 lbs (6.6 kg)
Buoyancy141.41 lbs (64.1 kg)
Body MaterialRotoMolded Polyethylene
Latch MaterialSteel (Nickel-black Plated)
O-Ring MaterialSilicone Sponge
Foam MaterialNo Foam, empty case standard (Optional PE and PU, 1 and 2 lb. options filled and lined)
Purge Body MaterialAluminum
PRV Valve Material.5 PSI Standard, Light Lift .25 PSI
Handle MaterialHeavy Duty Injection Molded Standard
Optional Handles MaterialStainless Steel Passivate and Stainless Steel Black
Hardware MaterialYellow Carbon Steel Standard
Optional Hardware MaterialBlack Carbon Steel, Stainless Steel Passivate and Stainless Steel Black
Minimum Temperature-20° F (-29 ° C)
Maximum Temperature140° F (60 ° C)
Testing
Pelican-Hardigg Single Lid style roto cases have been designed and tested to meet or exceed the applicable requirements of the following standards. Qualification is conducted through direct testing and/or engineering analysis of product and test similarity; testing has been conducted on containers of various sizes and configurations as applicable.
- MIL-STD-810E, Method 505.3, Procedure II SOLAR RADIATION
- ASTM E96, MIL-C-4150J and ASTM D 1008-64 WATER-VAPOR TRANSMISSION RATE (PERMIABILITY)
- FED SPECIFICATION L-P-390c, Type M. TENSILE/ELONGATION/COMPRESSIVE/FLEXURAL
- FED-STD-101, Method 5009 LEAK TEST
- FED-STD-101, Method 5016 & DOT 49CFR 178.350 CONCENTRATED LOAD (STACK/SUPERIMPOSED)
- FED-STD-101, Method 5011 HANDLING
- MIL-STD-810E, Method 514.4 VIBRATION (COMPOSITE INPUTS)
- MIL-STD-810E, Method 516.4, procedure IV SHOCK (TRANSIT DROP)
- MIL-STD-810E, Method 501.3, procedure I TEMPERATURE (STORAGE, HIGH TEMPERATURE)
- MIL-STD-810E, Method 502.3, procedure I TEMPERATURE (STORAGE, LOW TEMPERATURE)
- MIL-STD-810E, Method 507.3, Procedure I RELATIVE HUMIDITY
- MIL-STD-810E, Method 500.3 ALTITUDE (LOW PRESSURE)
- MIL-STD-210C & MIL-STD-810D, Method 510.2, Procedure I SAND AND DUST
- MIL-STD-810E, Method 509.3, Procedure I @ 5% SALT FOG
- MIL-STD-810D, Method 508.4 FUNGUS
- MIL-STD-810D, Method 506.2, Procedure I RAIN WITH WIND
- MIL-STD-810D, Method 512.2, Procedure I IMMERSION ONE (1) METER
- ATA 300, Category I REQUIRMENTS FOR REUSABLE CONTAINERS
