Product Description

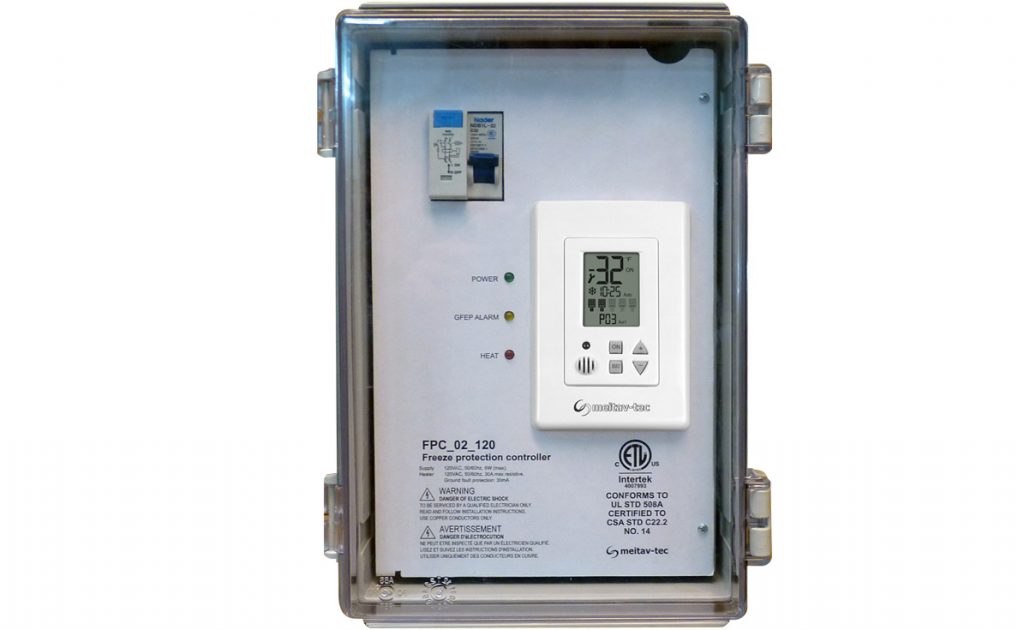

PYRO FPC is a “Plug and Play” Freeze Protection Controller and a Power panel for frost protection, Heat tracing, ice and snow melting applications. When the temperature drops below the pre-defined, adjustable set-points, the contactor is activated energizing the heating elements. The Technician Settings mode enables an installer, or a technician to adjust the parameters for customized installations using the electronic controller installed in the front panel.
Features- Up To 30A 120V or 208//240V Outputs To The Heaters
- Hold-On (Time delay) Adjustable Range Of Up To 99 hours
- Temperature input from the provided temperature sensor (10 m. / 30 feet long) and also from a 3rd party aquastat
- Integrated Electronic Controller with Backlit LCD Display
- Integral 30mA GFEP allows manual reset from the front panel
- Adjustable Set-points, Hold ON/OFF Time delay and manual ON duration
- Includes PYROULS sensor
- Manual and Automatic modes, selected by a button
- Testing/commissioning mode for easy and fast system test, all year long (even during summer or at high temperature condition)
- Multiple Sensors Input-Optional
- ETL Certified for USA and Canada
- Imported to King Specifications
