category:
Firestop
country_of_origin:
US
manufacturer:
Rectorseal
mpn:
66582
subcategory:
Commercial or Industrial
type:
Intumescent Sleeves
weight:
4.50
Product Description

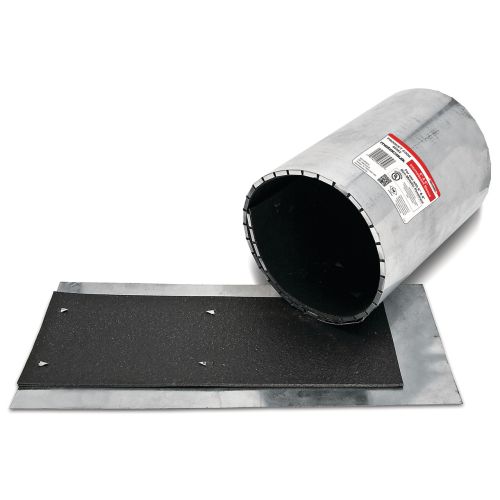

Rectorseal - 66582 Metacaulk Intumescent Sleeve is a firestop seal for several types of plastic pipe hard non-metal conduit installations. Ideal for flammable pipes penetrating the uneven concrete fluted deck assembly. No need to firestop both penetration sides.
Features
- Tested for PVC, CPVC, ABS and PVC/ABS Foam Core, FRPP, PP, PVDF pipe
- Easy installation without modifications, steel bolts or fasteners- Fasten with fiberglass tape, pop rivets or hose clamps around pipe.
- Economical and Saves on Labor Cost
- No Measurement of Material Required and easily wraps around pipes. Eliminates need for collars/wrap strips.
- Flexible, Can be retrofitted, easily removed and replaced and is manufactured from a durable galvanized steel outer shell lined with a highly intumescent material
Additional Information
Case Weight (lbs) 4.50
Case Height (inch) .25
Case Length (inch) 8.25
Case Width (inch) 18.00
Brand Metacaulk
Recommended Use Can be used with pipe sizes ranging from 2 in to 8.0 in, Great for pipes penetrating walls 90° angle. Not for use in environments where long-term exposure to rainfall/saltwater spray may occur
UPC 021449665827
Interleaved 10021449665824
Color NA
Application Concrete floor/wall installations concrete fluted deck assembly. Approved with optional sleeve (S/10 or heavier) cast or grouted into floor/wall for 8"(20 cm) or smaller PVC/CPVC. Gives immediate smoke seal when used with Biostop 500+/150+
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
