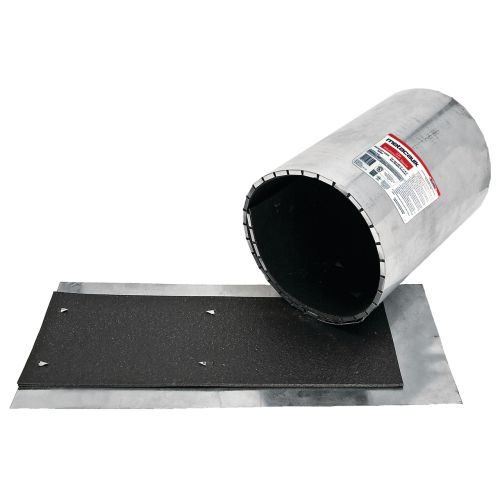

Rectorseal 66584 Metacaulk Intumescent Sleeve for 2", 3", 4" Pipe

Rectorseal 66584 Metacaulk Intumescent Sleeve for 2", 3", 4" Pipe

Dropship

SKU SKU:kpi055-66584

Regular price $87.47 USD
Regular price Sale price $87.47 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Firestop
country_of_origin: US
manufacturer: Rectorseal
mpn: 66584
subcategory: Commercial or Industrial
type: Intumescent Sleeves
weight: 6.00

Product Overview

Metacaulk Intumescent Sleeve is a firestop seal for several types of plastic pipe & hard non-metal conduit installations. Ideal for flammable pipes penetrating the uneven concrete fluted deck assembly. No need to firestop both penetration sides.

Features

  • Tested for PVC, CPVC, ABS and PVC/ABS Foam Core, FRPP, PP, PVDF pipe
  • Easy installation without modifications, steel bolts or fasteners- Fasten with fiberglass tape, pop rivets or hose clamps around pipe.
  • Economical and Saves on Labor Cost
  • No Measurement of Material Required and easily wraps around pipes. Eliminates need for collars/wrap strips.
  • Flexible, Can be retrofitted, easily removed and replaced and is manufactured from a durable galvanized steel outer shell lined with a highly intumescent material

Additional Information

Case Weight (lbs) 6.00
Case Height (inch) 2.25
Case Length (inch) 8.75
Case Width (inch) 20.25
Brand Metacaulk
Recommended Use Can be used with pipe sizes ranging from 2 in to 8.0 in, Great for pipes penetrating walls > 90° angle. Not for use in environments where long-term exposure to rainfall/saltwater spray may occur
UPC 021449665841
Interleaved 10021449665848
Color NA
Application Concrete floor/wall installations & concrete fluted deck assembly. Approved with optional sleeve (S/10 or heavier) cast or grouted into floor/wall for 8"(20 cm) or smaller PVC/CPVC. Gives immediate smoke seal when used with Biostop 500+/150+
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
