Product Description

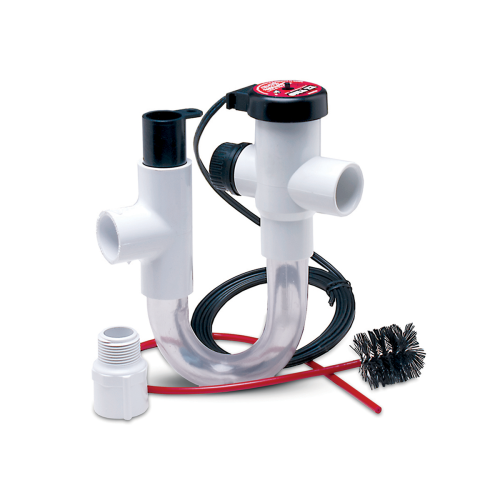

Rectorseal - 83230 (EZT230) Float switch overflow protection. Clear cleanable trap
Features
- Proven reliability and higher switching capacity with microswitch technology (4A NO/NC)
- Transparent Trap is easy to clean and easy to inspect.
- Watertight red caps provide easy access to clean the trap and drain pan outlet.
- Quality construction with durable schedule 40 PVC fittings.
- SmartTrap adds a float switch that warns of blockage and shuts down the A/C unit. Slip fit float switch removes easily for cleaning and inspection.
Additional Information
Case Weight (lbs) 9.60
Case Height (inch) 9.50
Case Length (inch) 8.56
Case Width (inch) 21.13
Brand EZ Trap
UPC 021449832304
Interleaved 10021449832301
Color WHITE
Application Fits most applications, Include clear U-bend for inspection access ports for cleaning, Includes 3/4" Standard Trap, 1" cross, 3/4" locking cap, 1" x 3/4" bushing, 3/4" tee, 3/4 black stub, 3/4" male adapter, float switch assembly, 48" cable, clean
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
