category:
HVAC
country_of_origin:
GB
manufacturer:
Rectorseal
mpn:
83831
subcategory:
HVAC Installation
type:
Condensate Pumps
weight:
4.00
Product Description

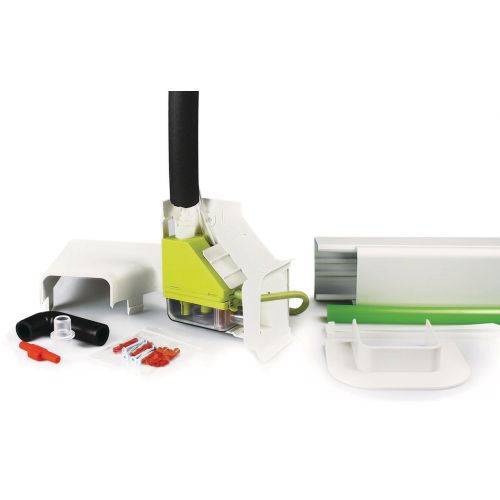

Rectorseal - 83831 Maxi Lime Pumps are designed with both the pump and reservoir as one integral unit, sharing a common body. No connecting tubes or wires are needed. The pumps clip directly onto the reservoir for minimal suction lift. Lineset cover is included
Features
- Left or right install
- Easily accessed for filter cleaning
- Two lineset cover styles available - Slimline or Fortress
- Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
- 3A N/C dry contacts rated @ 5A inductive @ 230V AC
Additional Information
Case Weight (lbs) 4.00
Case Height (inch) 2.40
Case Length (inch) 7.00
Case Width (inch) 14.40
Brand Aspen
Recommended Use Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment.
UPC 021449838313
Interleaved 10021449838310
Color LIME GREEN
Application Pump assembly mounts outside evaporator is clipped directly onto the reservoir for minimal suction lift, behind easy to remove elbow cover, Transparent reservoir clips off pump for easy filter maintenance access
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
Pump Air Handler Wall Mounted
BTU Capacity 2.5 ton to 4.5 ton, Over 4.5 ton
Pump Location Remote
