category:
HVAC
country_of_origin:
TH
manufacturer:
Rectorseal
mpn:
83919
subcategory:
HVAC Installation
type:
Condensate Pumps
weight:
2.50
Product Description

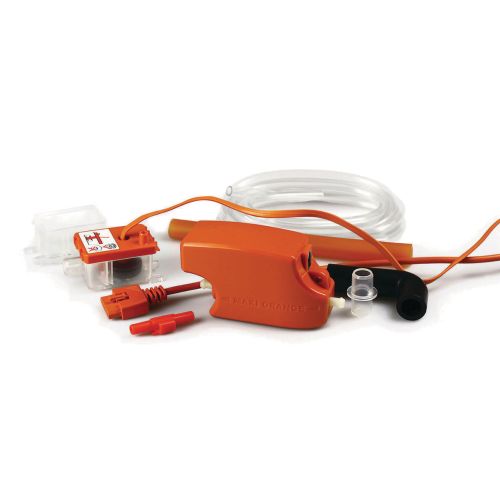

Rectorseal - 83919 Maxi Orange pumps are designed with a separate pump and reservoir. The 2 elements connect together with a length of 1/4" id vinyl tube and a communication cable, which are both usually around 6 ft. long. This may be extended if required.
Features
- Self Priming and Pump installs remotely above ceiling or inside lineset cover
- Pan mount and inline style reservoir included and Modular terminals for fast connection
- Gravity Inlet
- Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
- 3A N/C dry contacts rated @ 5A inductive @ 230V AC
Additional Information
Case Weight (lbs) 2.50
Case Height (inch) 2.40
Case Length (inch) 7.00
Case Width (inch) 14.40
Brand Aspen
Recommended Use Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment.
UPC 021449839198
Interleaved 10021449839195
Color ORANGE
Application Pump mounts outside evaporator, hidden in the horizontal lineset cover. Reservoir mounts in evaporator, below drain pan. Designed for installation above a false ceiling where possible, or in casing of minisplit evaporator unit where space permits.
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
Pump Air Handler Ceiling, Ducted, Floor, Wall Mounted
BTU Capacity Under 2.5 ton, 2.5 ton to 4.5 ton, Over 4.5 ton
Pump Location Remote
