category:
HVAC
country_of_origin:
CN
manufacturer:
Rectorseal
mpn:
96424
subcategory:
HVAC Installation
type:
Surge Protection
weight:
5.00
Product Description

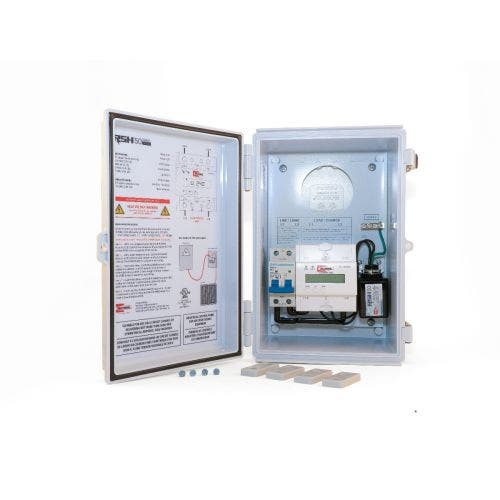

Rectorseal - 96424 The RSH-50 VRMDC KIT combines the VRM60A, RSH-50, 60A disconnect breaker in a NEMA 3R enclosure, for an all-in-one equipment solution. The RSH-50 uses Gas Discharge Tube (GDT) Technology along with Thermally Fused Metal Oxide Varistors (TMOV) for ultimate protection.
Features
- RSH-50 Surge Protector, Voltage Range Monitor, and 60A Disconnect Breaker inside a NEMA 3R/IP66 enclosure
- Over-Under Voltage Protection with Adjustable Auto Cut-Off and Auto Restore Delay Time; Over-Under Voltage Cutoff Delay can be adjusted from 0.5 to 60 Seconds; Load Restore Delay adjustable from 1 to 600 Seconds 120/240 Single Phase.
- Magnetic Latching Relays for Maximum Reliability
- Large Easy to Read LCD Digital Display with Dual Red and Green LED Diagnostics Indicators
- Easy Set Up, Field Programmable, No Laptop or Programming Tool Required
Additional Information
Case Weight (lbs) 5.00
Case Height (inch) 6.50
Case Length (inch) 9.25
Case Width (inch) 12.80
Brand RSH
Recommended Use Residential and Commercial Use, all single phase 120/240V HVACR Equipment (air conditioning, heat pumps, mini-split applications)
UPC 021449964241
Interleaved 10021449964248
Application Protects single phase equipment from electrical surges and voltage disturbances by utilizing safety thermal fusing and gas discharge tube surge protection technology, combined with the ability to monitor the line protecting equipment against over and unde
Fin/Blade Spacing .000
Fin Degree 0
Screw Holes 0
