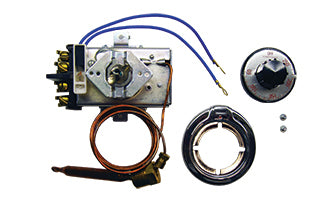

Robertshaw 5000 Series Electric Thermostats 5000-813

The Robertshaw 5000 Series Electric Thermostat is a heavy-duty thermostat designed for use in harsh applications where precise temperature control is required. The control uses a double pole single throw (DPST) snap-action mechanism with a positive OFF switch. It is recommended for use on applications that require double pole operation and accurate temperature control.

Features and Benefits

• DPST with positive OFF
• Mechanical snap-action is instantaneous, positive and non-fatiguing
• Reacts to exceedingly small movements of the diaphragms for very close temperature differential
• Diaphragm assembly features two stainless steel diaphragms electrically welded together
• Maximum sensitivity without over-stressing the metal
• Supplied with terminals mounted in four different positions
• Bulb and capillary available in copper, nickel plated copper, or stainless steel
