category:
Cooking
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
5300-146
subcategory:
Thermostats & Thermopiles

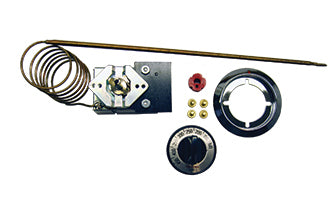

The Robertshaw 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.
Features and Benefits
- KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
- Rugged and compact design for versatility and long life
- Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
- Plastic coating available for protection against moisture, dust, etc. (most models)
- Dials of heat resistant plastic available
- RX millivolt models with hermetically sealed reed switch
- Stem flat in down position
- Ambient temperature 200°F (93°C)
Additional Information
Additional Information
Series ApplicationSJ Pilot Duty Model with Auxiliary Switch
Electrical Rating30 Amps @ 277V AC|20 Amps @ 480V AC|18 FLA, 72 LRA @ 250V AC|125 VA Pilot Duty at 120/277 Volts
Temperature Range100°F to 493°F (37.7°C to 256.1°C)
Comments1-10 Dial Uni-Kit
Stem Length13/16"
Mounting Type#1, 1-3/4"
Factory Part NumberSJ-328
Capillary Length36"
Bulb Size3/16" x 11-1/8" Nickel
For OEM/Model SeriesDown
Dial Type4-Way
Mechanical Differential12°F
