category:
Cooking
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
5300-711
subcategory:
Thermostats & Thermopiles
Product Description

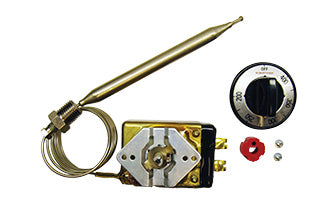

Robertshaw - 5300-711 The Robertshaw 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.
Features and Benefits
- KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
- Rugged and compact design for versatility and long life
- Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
- Plastic coating available for protection against moisture, dust, etc. (most models)
- Dials of heat resistant plastic available
- RX millivolt models with hermetically sealed reed switch
- Stem flat in down position
- Ambient temperature 200°F (93°C)
Additional Information
Additional Information
Series ApplicationKX Series Pilot Duty Model Dip Sealed
Electrical Rating120/277V AC, 50 VA Pilot Duty
Temperature Range200°F to 400°F (93.3°C to 204.4°C)
CommentsUS Range #227141. Has 1/4" pipe stuffing box - nickel plated. Dip Sealed
Stem Length13/16"
Mounting Type#1, 1-3/4"
Factory Part NumberKX-87
Capillary Length36"
Bulb Size3/8" x 5-5/8" Nickel
Stuffing Box1/4" Nickel
For OEM/Model SeriesDown
Dial Type4-Way
Mechanical Differential8°F
