category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
700-406
subcategory:
Gas Valves And Regulators
Product Description

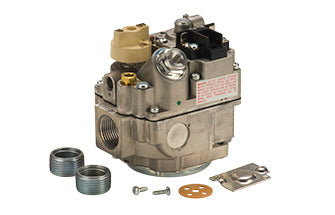

Robertshaw - 700-406 700 Series - 24 Volt Combination
The Robertshaw 700 Series 24 Volt Combination Gas Valves offer replacement flexibility. With capacities ranging to 720,000 BTU, three-position outlets and multi-positional capability, these combination gas valves offer unlimited replacement possibilities. The 24 Volt Uni-Kit models are suitable for either natural or LP gas. The valve is factory set at 3.5‚¬ WC natural gas. A regulator cover plate is included to convert to LP gas.
Features and Benefits
- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4‚¬ tubing
- Ambient temperature of -40°F to 175°F
- Combination screw/spade terminal type
- Maximum inlet pressure 14‚¬ WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- Multiple actuators available
- RoHS compliant
Additional Information
Additional Information
Series Application24 Volt Combination Gas Valve
Electrical Rating24V AC @ 0.2 Amps, 50/60 Hz|12V DC @ 0.18 Amps, 50/60 Hz
Factory Part Number7000BER
Pressure RegulationUni-Kit
Capacity300,000 BTU
Reducer Bushing (NPT)2
Inlet Size3/4"
Outlet Size3/4"
Side OutletsStraight-Thru
