category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
710-511
subcategory:
Gas Valves And Regulators
Product Description

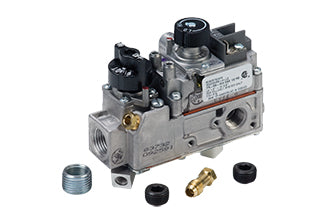

Robertshaw - 710-511 710 Series - Low Capacity
The Robertshaw 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-positionoutlets, multi-positional capability and componentreplaceability.
Features and Benefits
- Low capacity with 3-13/16‚¬ H x 4-21/32‚¬ L x 1-29/32‚¬ W dimensions
- Gas cock dial marking Off - Pilot - On
- Ambient temperature of -40°F to 175°F
- Pilot outlet 1/4‚¬ tubing
- Maximum inlet pressure 14‚¬ WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- Multiple actuators available
- RoHS compliant
Additional Information
Additional Information
Series ApplicationMillivolt Low Capacity
ApplicationFireplace log control
Electrical Rating250 mV to 750 mV
CommentsHas special quick dropcut safety magnet to meet Canadian specifications used with quick-dropout pilot assembly 1819-100
Factory Part Number7000MVRB-4-LC
Pressure RegulationHi-Lo Adjustable 1.7" to 3.5" Natural Gas
Capacity70,000 BTU
Reducer Bushing (NPT)NA
Inlet Size1/2"
Capillary LengthN/A
Outlet Size3/8" Straight-thru
