category:
Cooking
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
Y-76000-AF10
subcategory:
Gas Valves And Regulators

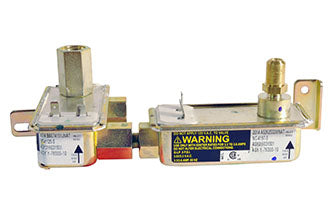

The Robertshaw Combi Series Valves is a gas oven valve and regulator assembly. The Combi Series Valves contain a regulator which limits the incoming gas pressure to a safe and constant level for the burner, and a safety valve which ensures that no gas is released until the ignitor has received the proper voltage needed to ignite the gas range.
Additional Information
Electrical Rating3.3 to 3.6 Amp (60 Hz)
Mounting Typebottom, left and right, 2 brackets
Inlet Size9/16-24 UNEF 2 B, 3/8 TUBING LOXIT
Outlet SizeOrifice spud and Pin # 46-56 and 9/16-24 UNEF 2 B, 3/8 TUBING LOXIT
Terminals1/4 male tab terminals and male tab 0.187" terminals.
Ignition SystemIgniters 3.3 /3.6 Amp @ 116V AC 60 Hz
