country_of_origin:
US
manufacturer:
Robertshaw
mpn:
RS8210
Product Description

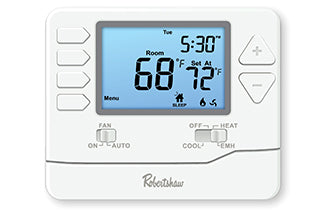

Robertshaw - RS8210 Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS8210 non-programmable wall thermostat.
Features- Multi-Stage - 2 Heat / 1 Cool
- Large terminal blocks for easy installation
- Universal sub-base
- Quick access menu button
- Contractor/technician setup menu Simple, yet powerful control.
- Large, easy-to-read 4.6-square-inch blue backlit display
- 24V AC Powered OR Battery Operation (Included)
- 6Year Limited Warranty
- Easy-access front-load battery compartment
- Adjustable temperature differential (swing) for energy optimization and maximum system life
- Adjustable room temperature calibration
- Adjustable setpoint limits
- Filter change reminder
- Five-minute selectable on/off compressor delay protection for short-cycling prevention
- Separate O and B terminals
- UPC 662013228200
Additional Information
Series ApplicationMulti-Stage 2 Heat / 1 Cool Non-Programmable
Factory Part NumberRS8210
UPC662013228200
Dimensions4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
Mounting TypeWall or junction box
System Fuel SourceGas, electric or oil
Heat Pump CompatibilitySystems with auxiliary or emergency heat
Millivolt Application CompatibilityYes
Temperature Range41°F to 95°F (5°C to 35°C)
Control Temperature44°F to 90°F (7°C to 32°C)
Display Accuracy+- 1°F (at 68°F) / +- 1°C (at 20°C)
Power Source24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
TerminalsR, C, Y, W2, W/E, G, O, B
