Safety Speed 6480-20C Vertical Panel Saw

Safety Speed 6480-20C Vertical Panel Saw

Dropship

Get it by Fri, Jan 24 - Wed, Jan 29

SKU SKU:kpi166-6480-20C

Regular price $2,069.65 USD
Regular price Sale price $2,069.65 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Sign Cutting Solutions
country_of_origin: USA
dimension: 60 x 11 x 70in
frame_length: 60"/ 525mm
manufacturer: Safety Speed Manufacturing
mpn: 6480-20C
subcategory: Sign Cutting Vertical Panel Saws
type: Vertical Panel Saws
weight: 189 lbs

Product Description

Safety Speed Manufacturing - 6480-20C Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.

The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.

The 6480-20C features over $500 in savings compared to buying the C4 Panel Saw with each accessory. Accessories included as standard equipment on the 6480-20C include:

  • A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
  • General-purpose saw blade.
  • a dust bonnet allowing you to set your machine up for collecting dust
  • 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
  • Folding Stand

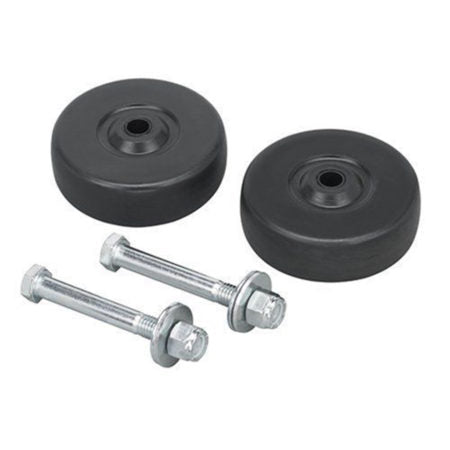

  • Wheels
  • Zinc plated 1 ¾” steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards

Additional Information

Weight189 lbs
Dimensions60 x 11 x 70in
Max. Crosscut50"/1270mm
Max. Rip Cut96"/2450mm
Cut Depth1 ¾"/45mm
Cut Accuracy1/32"/.8mm
Frame Length60"/ 525mm
Saw Blade Diameter8"/210mm
Saw Blade Bore Size5/8"
Daily Usage1-3 Hours
Rollers8
Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
Motor ManufacturerMilwaukee Tool
Machine Footprint15sqft
Machine Length60"/1525mm
Machine Height75"/1900mm
Machine Width with stand attached36"/915mm
Circular Saw Motor Revolutions Per Minute (RPM)5,800 RPM
Country of OriginUSA
