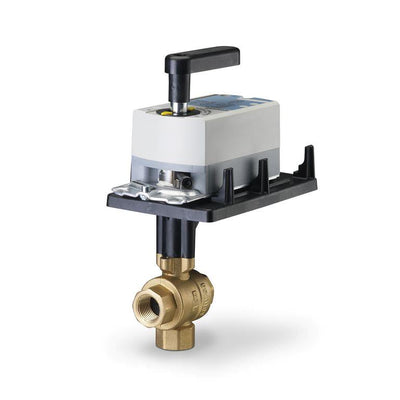

Siemens 171A-10366 599 SERIES 3W, 1-1/4", 40CV BALL VALVE, 3-POS FLOAT, NSR

Product Description

Siemens - 171A-10366 This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/4-inch valve is 40 Cv, with chrome-plated brass ball and brass stem, includes an operating handle that can manually operate valve in the event of power failure.
