Siemens 171B-10369S 599 SERIES 3W, 1-1/2", 63CV STAINLESS STEEL BALL VALVE, 3-POS FLOAT, NSR

Siemens 171B-10369S 599 SERIES 3W, 1-1/2", 63CV STAINLESS STEEL BALL VALVE, 3-POS FLOAT, NSR

Dropship

Get it by Mon, Jan 13 - Sat, Jan 18

SKU SKU:kpi058-171B-10369S

Regular price $524.73 USD
Regular price Sale price $524.73 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Siemens
mpn: 171B-10369S

Product Description

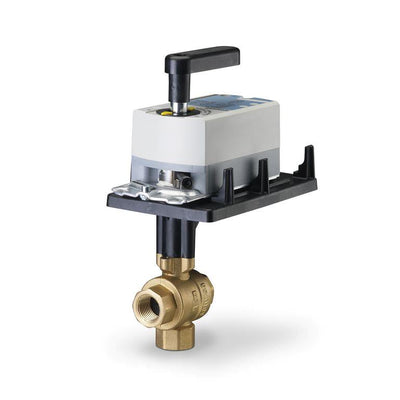

Siemens - 171B-10369S This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 63 Cv, full-port valve without flow characterizer insert, with stainless steel ball and stem, includes an operating handle that can manually operate valve in the event of power failure.

Additional Information

Valve TypeThree-way
Valve Body StyleRotary-Ball
Port Configuration3-Way Mixing/Diverting
End ConnectionNPT
Material, valve bodyBrass
Material, inside setBall: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel
