Siemens

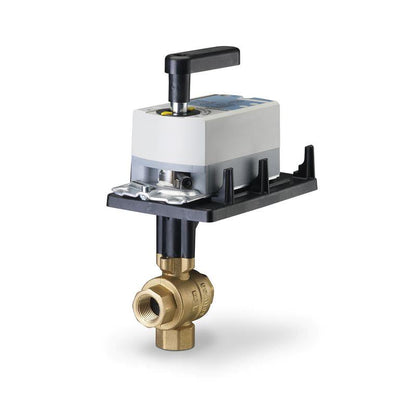

Siemens 171B-10372 599 SERIES 3W, 2", 100 CV BALL VALVE, 3-POSITION FLOATING, NSR ACTUATOR

Siemens 171B-10372 599 SERIES 3W, 2", 100 CV BALL VALVE, 3-POSITION FLOATING, NSR ACTUATOR

Dropship

Get it by Mon, Jan 13 - Sat, Jan 18

SKU SKU:kpi058-171B-10372

Regular price $566.22 USD
Regular price Sale price $566.22 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Siemens
mpn: 171B-10372

Product Description

Siemens - 171B-10372 This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 100 Cv, with chrome-plated brass ball and brass stem, includes an operating handle that can manually operate valve in the event of power failure.

Additional Information

Flow Coefficient, Cv100
Valve TypeThree-way
Valve Body StyleRotary-Ball
Port Configuration3-Way Mixing/Diverting
End ConnectionNPT
Material, valve bodyBrass
Material, inside setBall: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-r
