manufacturer:
Siemens
mpn:
171B-10372S
Product Description

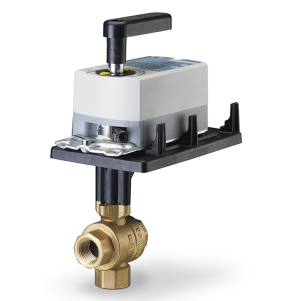

Siemens - 171B-10372S This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 100 Cv, with stainless steel ball and stem, includes an operating handle that can manually operate valve in the event of power failure.
Additional Information
Valve TypeThree-way
Valve Body StyleRotary-Ball
Port Configuration3-Way Mixing/Diverting
End ConnectionNPT
Material, valve bodyBrass
Material, inside setBall: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel
