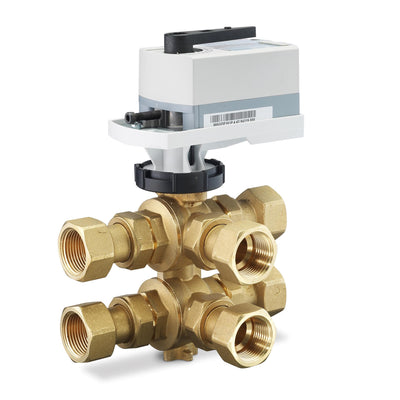

Siemens 171C-10602-4.7-4.0 6W BALL VALVE 1", A=4.7CV, B=4.0CV, 58PSI CLOSE-OFF, FEMALE NPT, 0-10 V NSR

This 1 inch 599 Series 6-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly is used to control hot or chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. 58 psi close-off with 0% leakage. Source A = 4.7 Cv and Source B = 4.0 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
