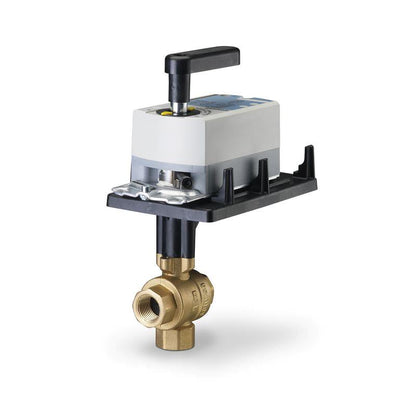

Siemens 171D-10371 599 SERIES 3W, 2", 63 CV BALL VALVE, PROPORTIONAL (0-10V), NSR ACTUATOR

Siemens 171D-10371 599 SERIES 3W, 2", 63 CV BALL VALVE, PROPORTIONAL (0-10V), NSR ACTUATOR

Dropship

SKU SKU:kpi058-171D-10371

Regular price $669.13 USD
Regular price Sale price $669.13 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Siemens
mpn: 171D-10371

This 599 Series 3-way ball valve with a non-spring return Proportional (0-10V) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 63 Cv, with chrome-plated brass ball and brass stem, includes an operating handle that can manually operate valve in the event of power failure.

Additional Information

Valve TypeThree-way
Valve Body StyleRotary-Ball
Port Configuration3-Way Mixing/Diverting
End ConnectionNPT
Material, valve bodyBrass
MediumWater , Water with anti-freeze
Leakage rateANSI Class IV
Medium temperature35¦250 ºF
Valve Actuator TypeEle
