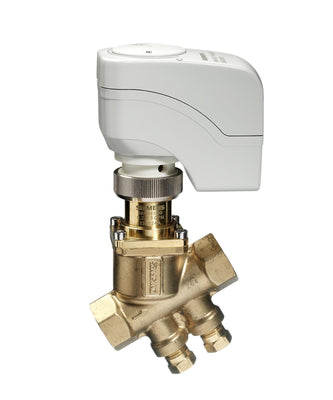

Siemens 230-04314-12 PICV, 1-1/4", NO, 12 GPM MAX FLOW PRESET, SSD ACTUATOR, 3P (FLOATING), NSR

Siemens 230-04314-12 PICV, 1-1/4", NO, 12 GPM MAX FLOW PRESET, SSD ACTUATOR, 3P (FLOATING), NSR

Dropship

SKU kpi058-230-04314-12

GTIN :

MPN : 230-04314-12

$454.48 USD
$454.48 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Siemens
mpn: 230-04314-12

Product Description

Siemens - 230-04314-12 PICV, 1-1/4", NO, 12 GPM max flow preset, SSD Actuator, 3P (floating), NSR Pressure Independent Control Valve, 1-1/4 inch, Normally Open, preset to 5 GPM maximum flow (field adjustable), with 24 Vac Electronic SSD Actuator, 3P (floating), NSR

Additional Information

Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionNPT
Material, valve bodyBrass
Material, inside setPlug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
MediumWater , Water with anti-
