manufacturer:
Siemens
mpn:
238-07336
Product Description

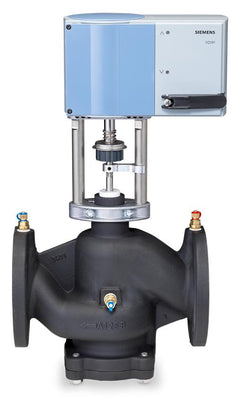

Siemens - 238-07336 238-07336 3 PICV ANSI 250 NO SRPressure Independent Control Valve, 3 inch, ANSI 250, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Open
Additional Information
Valve Size3 in
Port Configuration2-Way Normally open
End ConnectionFlanged
Material, valve bodyCast Iron
Trim MaterialBrass
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow CharacteristicLinear
MediumWater , Water with anti-freeze
Max GPM195 gpm
Min GPM31 gpm
Preset GPM195 gpm
Pressure ClassANSI 250
Leakage rateClass IV (0.01% of Cv)
Max. Inlet Pressure (absolute), Liquid200 psi
Max. Differential Pressure, Liquid90 psi
Medium temperature34…250 ºF
Stroke3/4 in., 20 mm
Close-off Pressure100 psi
Valve Actuator TypeElectronic
Actuation StyleLinear
Control SignalFloating control , 0...10 V
Fail SafeYes
Supply Voltage24 VAC/DC
Positioning time40 s
Power consumption20 VA
Positioning signal3-position, 0...10 V DC, 4…20 mA
Dimensions (W x H x D)12.5 x 23.35 x 8.25 in
