manufacturer:
Siemens
mpn:
239-07313
Product Description

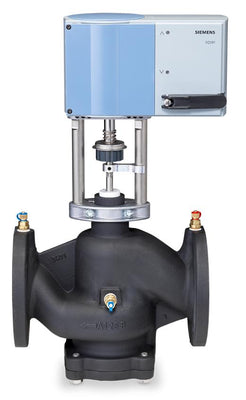

Siemens - 239-07313 PICV, 5 inch, ANSI 125, 485 GPM max. flow, SQV Actuator, Normally Closed, SRPressure Independent Control Valve, 5 inch, ANSI 125, 485 GPM maximum flow (field adjustable), with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Closed
Additional Information
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFlanged
Material, valve bodyCast Iron
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
MediumWater , Water with anti-freeze
Max GPM485 gpm
Min GPM85 gpm
Preset GPM485 gpm
Leakage rateClass IV (0.01% of Cv)
Medium temperature34…250 ºF
Stroke40 mm, 1.5 " mm
Stroke, inch1.5 "
Stroke, mm40 mm
Valve Actuator TypeElectronic
Actuation StyleLinear
Normally Open/Normally ClosedNormally Closed
Supply Voltage24 VAC/DC
Positioning time80 s
Power consumption20 VA
Positioning signal3-position / 0...10 V DC/ 4…20 mA
