manufacturer:
Siemens
mpn:
242-00232
Product Description

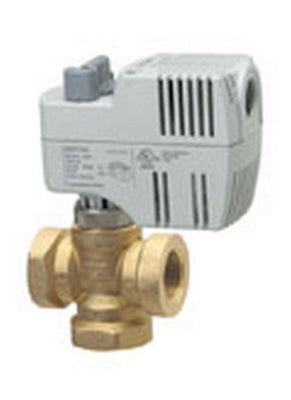

Siemens - 242-00232 Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24V 2-position SR actuator, fails AB-BZone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SFA11U 2-position, spring return actuator; 24 Vac; fails AB-B.
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SFA71U 2-position, spring return actuator; 24 Vac; fails AB-A closed.
Additional Information
Valve TypeThree-way
Valve Body StyleStroke-Globe
Port Configuration3-Way Diverting
End ConnectionNPT
Material, valve bodyBrass
Material, inside setTrim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateANSI Class III
Medium temperature34…230 ºF
Stroke1/10 in
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning time10 s
Power consumption9.8 VA
