manufacturer:
Siemens
mpn:
243-00210
Product Description

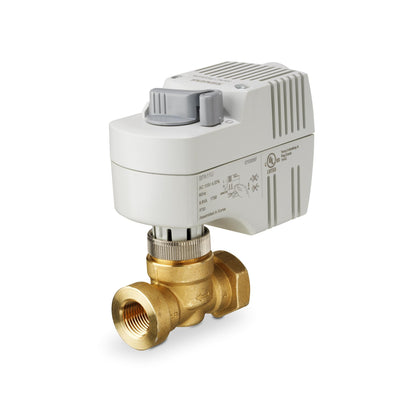

Siemens - 243-00210 Zone valve, 2-way, 1/2", 1.0 Cv, NPT w/ 24V 2-position SR actuator fails NOZone valve and actuator assembly. 2-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFA11U 2-position, spring return actuator; 24 Vac; normally open.
Zone valve and actuator assembly. 2-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFP71U 2-position, spring return actuator; 24 Vac; normally open.
Additional Information
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionNPT
Material, valve bodyBrass
Material, inside setTrim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateANSI Class III
Medium temperature34…230 ºF
Stroke1/10 in
Valve Actuator TypeElectronic
Normally Open/Normally ClosedNormally Open
Supply Voltage24 VAC
Positioning time10 s
Power consumption9.8 VA
