Siemens

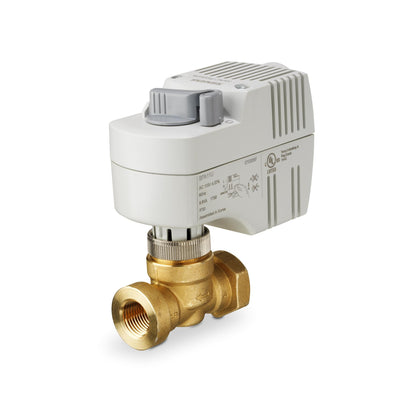

Siemens 244-00210 ZONE VALVE, 2-WAY, 1/2", 1.0 CV, NPT W/ 24V FLOATING NSR ACTUATOR

Siemens 244-00210 ZONE VALVE, 2-WAY, 1/2", 1.0 CV, NPT W/ 24V FLOATING NSR ACTUATOR

Dropship

SKU SKU:kpi058-244-00210

GTIN :

MPN : 244-00210

Regular price $114.07 USD
Regular price Sale price $114.07 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Siemens
mpn: 244-00210

Product Description

Siemens - 244-00210 Zone valve, 2-way, 1/2", 1.0 Cv, NPT w/ 24V floating NSR actuatorZone valve and actuator assembly. 2-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SSA81U 3-position, non-spring return actuator, 24V, normally closed

Additional Information

Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionNPT
Material, valve bodyBrass
Material, inside setTrim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateANSI Class III
Medium temperature34…230 ºF
Stroke1/10 in
Valve Actuator TypeElectronic
Normally Open/Normally ClosedNormally Closed
Supply Voltage24 VAC
Positioning time150 s
Power consumption0.8 VA
