manufacturer:
Siemens
mpn:
244-00231
Product Description

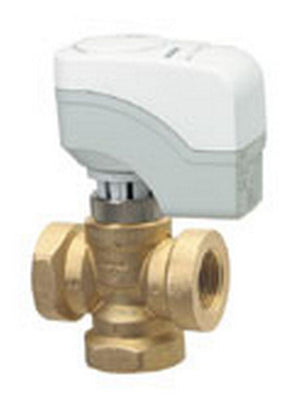

Siemens - 244-00231 Zone valve, 3-way, 1/2", 2.5 Cv, NPT w/ 24V floating NSR actuatorZone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 2.5 Cv; SSA81U 3-position, non-spring return actuator, 24V, AB-A closed in zero position.
Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.50-inch; Flow rate 2.5 Cv; SSA81U 3-position, non-spring return actuator, 24V, AB-A normally closed
Additional Information
Valve TypeThree-way
Valve Body StyleStroke-Globe
Port Configuration3-Way Diverting
End ConnectionNPT
Material, valve bodyBrass
Material, inside setTrim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateANSI Class III
Medium temperature34…230 ºF
Stroke1/10 in
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning time150 s
Power consumption0.8 VA
