manufacturer:
Siemens
mpn:
267-03078
Product Description

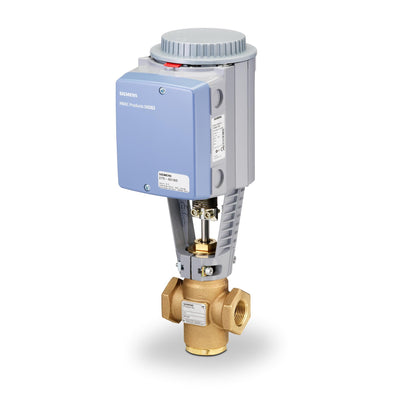

Siemens - 267-03078 Valve assy 2W NC 1-1/4" 16Cv Lin SS Trim Hi Temp Pkg FxF Prop El-Hydrl Act NSR
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.
Additional Information
Valve Body StyleStroke-Globe
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureYES
Port Configuration2-Way Normally closed
Medium temperature20…337 ºF
Stroke3/4 in
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning timePower stroke 30 s, Return stroke 15 s
Power consumption18 VA
