manufacturer:
Siemens
mpn:
268-03166
Product Description

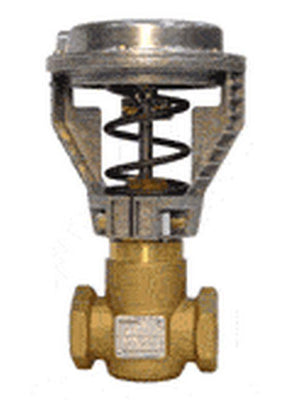

Siemens - 268-03166 Valve assy 2W NO, 3/4" 6.3Cv Eq Pct Brass Trim FxF, 8" Pneu Act 3-8psiFlowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 3-8 psi. The 2-way, normally open, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and female x female end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
