manufacturer:
Siemens
mpn:
270-03072
Product Description

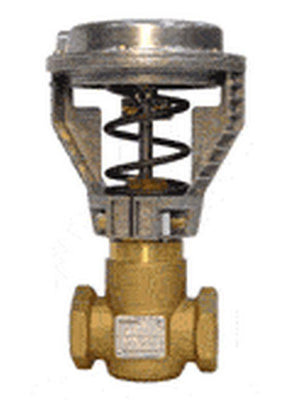

Siemens - 270-03072 Assembly: 2-Way, NC, 1/2", 1 Cv, Linear, SS Trim, FxF, 4" Pnu Act
Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 10-15 psi. The 2-way, normally closed, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureYES
Medium temperature20…337 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
