manufacturer:
Siemens
mpn:
277-03203
Product Description

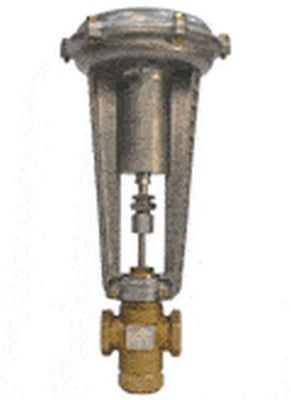

Siemens - 277-03203 Valve assy 3W Mix 1" 10Cv Eq Pct/Lin Brass Trim FxF, 8" Pneu ActFlowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumWater , Water with anti-freeze
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
