manufacturer:
Siemens
mpn:
277-06160
Product Description

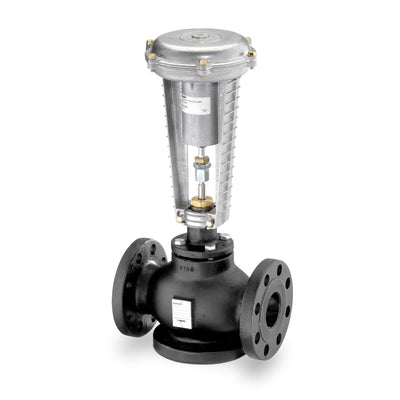

Siemens - 277-06160 Valve assy 3W Mix 2-1/2" 63Cv Eq Pct/Lin Bronze Trim Flanged 8" Pneu ActFlowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, bronze trim, and flanged end connections.
Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFlanged
Connecting threadDirect-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
