manufacturer:
Siemens
mpn:
277-06176
Product Description

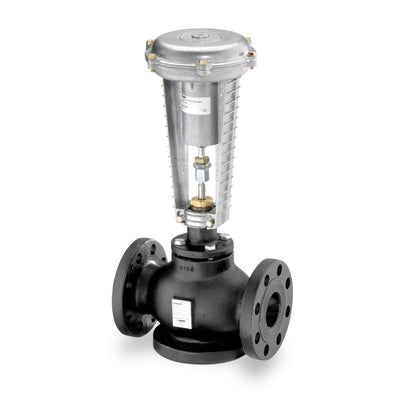

Siemens - 277-06176 Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged 8" Pneu Act
Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFlanged
Connecting threadDirect-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
