manufacturer:
Siemens
mpn:
278-03062
Product Description

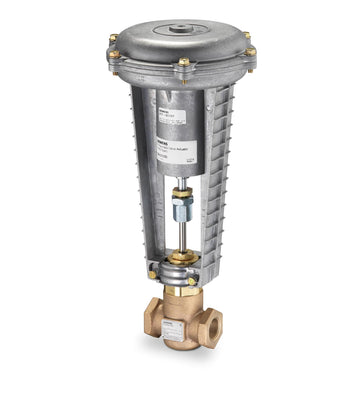

Siemens - 278-03062 Valve assy Hi Temp 2W NO 2" 40Cv Lin SS Trim FxF, 8" Pneu Act
Flowrite 599 Series Valve Assembly features a high-temperature 8-inch pneumatic actuator with 10 psi span. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureYES
Medium temperature20…337 ºF
Stroke3/4 in., 20 mm
Valve Actuator TypePneumatic
