manufacturer:
Siemens
mpn:
287-05964
Product Description

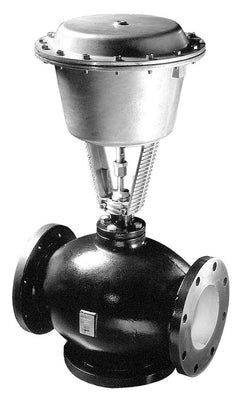

Siemens - 287-05964 Valve assy 2W NO, 6" 400Cv Eq Pct SS Trim Flanged 12" Pneu Act w/ pos
Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, 1-1/2-inch stroke, and 5 psi span. This flanged, 2-way, normally open, equal percentage valve assembly is ANSI Class 125 and has a stainless steel trim. This assembly has a flow rate of 400 Cv and a line size of 6".
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFlanged
Connecting threadDirect-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Stroke1-1/2 in., 40 mm
Valve Actuator TypePneumatic
