manufacturer:
Siemens
mpn:
289-06165
Product Description

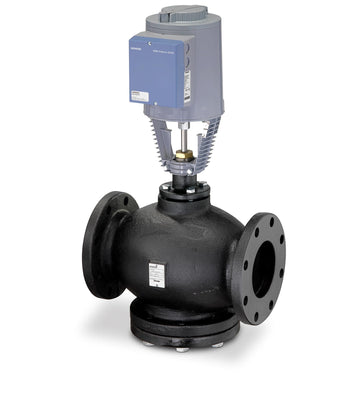

Siemens - 289-06165 Valve assy 3W Mix 2-1/2" 63Cv Eq Pct/Lin SS Trim Flanged float El-Hydrl Act SR
Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator with 3/4-inch stroke. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
Additional Information
Valve Body StyleStroke-Globe
End ConnectionFlanged
Connecting threadDirect-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Port Configuration3-Way Mixing
Medium temperature20…250 ºF
Ambient temperature, operation5 to 130 °F, -15 to 55 °C
Stroke3/4 in., 20 mm
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning timePower stroke 120 sec, Return stroke 120 sec, Spring return 10 sec
Power consumption18 VA
