manufacturer:
Siemens
mpn:
294-05932
Product Description

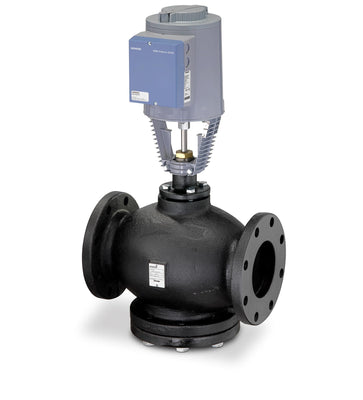

Siemens - 294-05932 Valve assy 2W NC 4", 160Cv, Eq Pct SS Trim Flanged Prop El-Hydraul Act SR
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 1-1/2-inch stroke. The 2-way, normally closed, 4-inch, 160 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.
Additional Information
Valve Body StyleStroke-Globe
End ConnectionFlanged
Connecting threadDirect-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
MediumSaturated steam , Water , Water with anti-freeze , Steam
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Port Configuration2-Way Normally closed
Medium temperature20…250 ºF
Ambient temperature, operation5 to 130 °F, -15 to 55 °C
Stroke1-1/2 in., 40 mm
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning timePower stroke 120 sec, Return stroke 20 sec, Spring return 20 sec
Power consumption28 VA
