manufacturer:
Siemens
mpn:
299-03149
Product Description

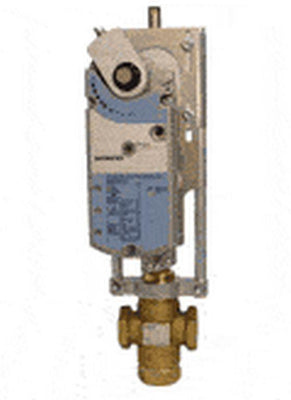

Siemens - 299-03149 Valve assy 3W Mix 1" 10Cv Eq Pct/Lin SS Trim FxF, 2-pos Elect Act SR
Flowrite 599 Series Valve Assembly features a 2-position control, spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and female x female end connections.
Additional Information
Valve TypeThree-way
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumWater , Water with anti-freeze
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
High temperatureNO
Medium temperature20…250 ºF
Ambient temperature, operation-25 to 130°F, -32 to 55°C
Stroke3/4 in., 20 mm
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Power consumption8 VA running, 53 VA holding
