manufacturer:
Siemens
mpn:
331-2904
Product Description

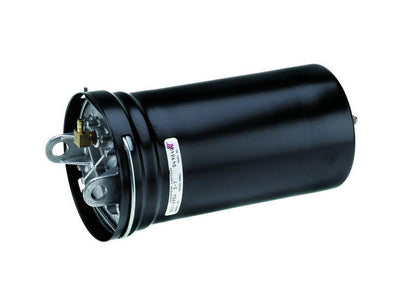

Siemens - 331-2904 Damper Actuator, Pneu No 4, 4" Stroke, 3-7psi, Integral Pivot Mount, UL Rec F/S
This 331 Number 4 Pneumatic Damper Actuator is UL recognized for fire and smoke applications and is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 3 to 7 psi, integral pivot mounting and a replaceable diaphragm. This actuator has an air connection of 1/8" NPT female with a dual barb elbow fitting for 1/4" OD tubing.
Additional Information
Pneumatic ModelNo. 4
Spring Range3-7 psi
Ball Joint ConnectorNO
ClevisNO
Mounting StylePivot
PivotYES
Pneumatic BracketNO
Positioning RelayNO
Stroke4 in
