manufacturer:
Siemens
mpn:
332-2973
Product Description

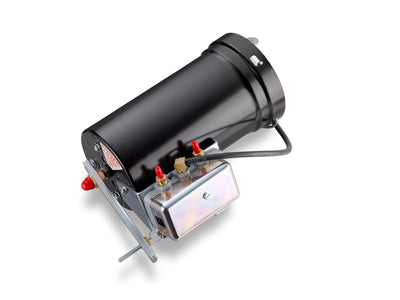

Siemens - 332-2973 Damper Actuator, Pneu No 4, 4" Stroke, 5-10psi, Integ Pivot, Univ Mt, Pos Relay
This 331Number 4 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 8 to 13 psi, a replaceable diaphragm and an air connection of 1/8" NPT female with a dual barb elbow fitting for 1/4" OD tubing. Also included is an universal mounting kit that allows fixed or pivot mounting, this kit contains a positioning relay and parts for frame mounting.
Additional Information
Pneumatic ModelNo. 4
Spring Range8-13 psi
Ball Joint ConnectorNO
ClevisYES
Mounting StyleExtended Shaft
PivotYES
Pneumatic BracketYES
Positioning RelayYES
Dimensions (W x H x D)6.93 x 9.33 x 20.83 in
Stroke4 in
