manufacturer:
Siemens
mpn:
332-3011
Product Description

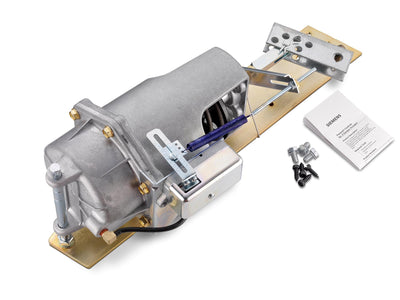

Siemens - 332-3011 Damper Actuator, Pneu No. 6, 4" Stroke, 3-13psi, Integral Pivot, Pos Relay
This 331 Number 6 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 8 to 13 psi, has a replaceable diaphragm and a 1/8" NPT female air connection. Also included is an extended shaft mounting kit with parts for frame mounting.
Additional Information
Pneumatic ModelNo. 6
Spring Range3-13 psi
Ball Joint ConnectorNO
ClevisYES
Mounting StyleExtended Shaft
PivotYES
Pneumatic BracketNO
Positioning RelayYES
Dimensions (W x H x D)8.09 x 8.8 x 20.83 in
Stroke4 in
