manufacturer:
Siemens
mpn:
337NO-04316-30
Product Description

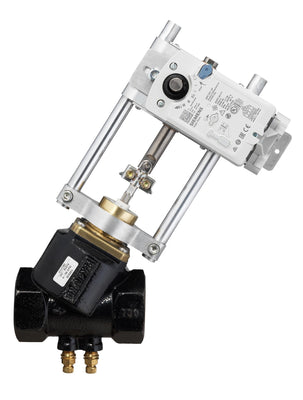

Siemens - 337NO-04316-30 2 PICV 30 GPM+MOD SR NO
Additional Information
Valve Size2 in
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionNPT
Connecting threadInternal NPT thread
Material, valve bodyDuctile iron
Trim MaterialBrass
Material, inside setPlug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow CharacteristicLinear
MediumWater , Water with anti-freeze
Max GPM50 gpm
Min GPM10 gpm
Preset GPM30 gpm
Pressure ClassANSI 250
Leakage rateANSI Class IV (0.01%) @ 100 psi
Rangeability≥ 100:1
Max. Inlet Pressure (absolute), Liquid400 psi
Max. Differential Pressure, Liquid58 psi
Medium temperature34…248 ºF
Stroke15 mm
Close-off Pressure100 psi
Valve Actuator TypeElectronic
Actuation StyleLinear
Normally Open/Normally ClosedNormally Open
Control Signal0...10 Vdc
Fail SafeYes
Supply Voltage24 VAC/DC
Positioning time60 sec
Power consumption3.5 VA
Dimensions (W x H x D)9 x 9 x 16 in
