manufacturer:
Siemens
mpn:
363-02023
Product Description

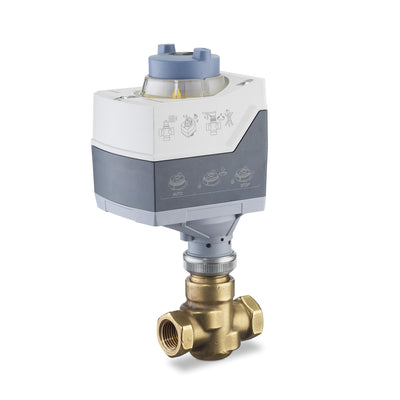

Siemens - 363-02023 MT Series 2W Valve assy ANSI 250 NC Mod Eq Pct 1/2" FxF 2.5Cv 24V float NSR
This Powermite 599 MT Series Valve Assembly features a 24V, non-spring return, electro-mechanical actuator with floating control. The 1/2 in. line size, 2-way normally closed assembly has a 2.5 Cv flow rate, stainless steel trim, FxF connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.
Additional Information
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFxF
Connecting threadDirect-coupled universal bonnet
Material, valve bodyBrass
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rateClass IV (0.01% of Cv)
Permissible operating pressureMax. differential pressure for modulating service: Liquid
Medium temperature35…250 ºF
Stroke7/32 in
Valve Actuator TypeElectronic
Normally Open/Normally ClosedNormally Closed
Supply Voltage24 VAC
Positioning time30 s
Power consumption2.5 VA
