manufacturer:
Siemens
mpn:
365-02040
Product Description

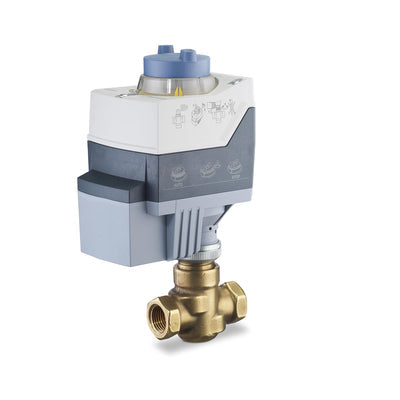

Siemens - 365-02040 MT Series 2W Valve asy ANSI 250 NO ModEqPt 1/2" AFxUM 2.5Cv 24V 0-10V/4-20mA SR
This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with 0-10V or 4-20 mA proportional control. The 1/2 in. line size, 2-way normally open assembly has a 2.5 Cv flow rate, brass trim, AFxUM connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.
Additional Information
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionAFxUM
Connecting threadDirect-coupled universal bonnet
Material, valve bodyBrass
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rateClass IV (0.01% of Cv)
Permissible operating pressureMax. differential pressure for modulating service: 25 psi (173 kPa)
Medium temperature35…250 ºF
Stroke7/32 in
Valve Actuator TypeElectronic
Normally Open/Normally ClosedNormally Open
Supply Voltage24 VAC
Positioning time30 s
Power consumption5.9 VA
